2004 Range Rover- The best gets better?
Changes for 04
OVERVIEW
THE FIRST LIMITED EDITIONS AND EVEN MORE LUXURY HIGHLIGHT 2004 RANGE ROVER
The first limited edition models of the new Range Rover highlight developments for the 2004 model year along with the availability of new interior colors and a luxury interior seating option.

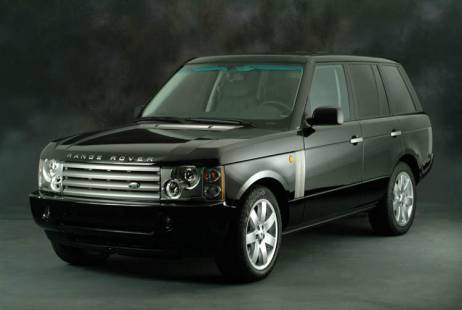

The new limited edition "Westminster" is finished in an elegant Java Black pearlescent paint that beautifully sets off the massive 20-inch bright alloy wheels. A silver WESTMINSTER badge on the tailgate identifies the vehicle as being one of only 300 to be built in Java Black.
The vehicle's interior embraces elegance and sophistication in a way only Range Rover could - using Grand Black Ebony wood similar to that seen on the finest grand pianos. Supple Jet Black leather and deep cut pile carpeting complete the luxurious appointments.
Both front and rear seats have two-level electric heating. Even the leather wrapped steering wheel can be warmed. The only features in the interior that are not in Jet Black are the headliner and grab handles which are in ivory. The Range Rover Westminster launches two additional features for 2004 - the Rain Sensor windshield wipers that activate automatically when water is detected and an integrated cargo area luggage net.
"The 2004 WESTMINTER Limited Editions are sure to be acquired quickly," said Richard Beattie, executive vice president, marketing and sales, Jaguar Land Rover North America. "All of our special or limited editions have been very well received. We know this one will continue that trend."
- Dual level heated front and rear seats
- Heated multi-functional leather steering wheel
- Integrated ski bag
- New for 2004 is the Luxury Interior Package, which includes:
- Contour Seats (14-way adjustment for driver with memory)
- Extended leather on full seat [excluding piping], door pulls, grab handles, center console lid and on upper dashboard
- Dual level heated front and rear seats
- Heated multi-functional leather steering wheel
- Integrated ski bag
Among the 2004 Range Rover's key standard features are:
- Monocoque body with integrated chassis
- All-independent suspension with interconnected air springs
- Advanced five-speed automatic transmission featuring CommandShift™ control allowing manual up and down sequential shifting, and a two-speed, electronically activated transfer gearbox which has the ability to shift from Low to High and High to Low ratio on the move
- Torque-sensing Torsen® center differential continuously and automatically changes the torque bias between front and rear axles depending on available traction
- Extensive use of aluminum body panels and sub chassis for weight reduction
- Outstanding crash test performance and eight airbag occupant protection
- Up to 62 cu.ft. of cargo capacity
- Up to 11 inches of ground clearance
- Focused product range: one body style and one engine, but with a choice of several elegant interior colors, including two luxury woods and five leathers
- harman/kardon® LOGIC7 digital surround sound system with six-disc CD changer, hidden audio cassette player and GPS/Navigation system.
The monocoque body with integrated chassis has extremely high levels of torsional rigidity that benefit Range Rover's on- and off-road ability. Advances in high-strength steel and sophisticated computer-aided design processes mean it is now possible to reap the refinement benefits of unitary construction without compromising off-road performance.
The elegant cabin design has won thousands of admirers during the first year of the vehicle's availability. The interior brings new levels of luxury to the class. A wide variety of styling and texture cues-including elegant woods and leathers-were studied from a diverse range of influences including Riva speedboats and high-precision running gear from ocean racing yachts to create this unique environment.
Central to the Range Rover's superb on- and off-road handling and ride is the subframe-mounted fully independent air suspension. The chassis also features a number of electronic traction control systems including Dynamic Stability Control (DSC) and the Land Rover-pioneered Hill Descent Control (HDC). Emergency Brake Assist (EBA) and Electronic Brakeforce Distribution (EBD) supplement the standard anti-lock brakes (ABS).
The all-aluminum, 4.4-liter V8 engine is free-revving thanks to its 32-valve, DOHC design. It produces 282 horsepower at 5,400 rpm and generates 325 lbs-ft of torque at 3,600 rpm. It can tow up to 7,700 lbs., negotiate the toughest off-road trails or cruise at speeds up to 122 MPH (where allowed). EPA mileage is 12 MPG city, 17 highway.
A state-of-the-art, five-speed ZF transmission provides fully automatic and CommandShift™ manual operation, even in Low range.
The new Range Rover has a comprehensive package of active and passive safety features including eight standard airbags protecting both front and rear passengers in frontal and side collisions.
Color and Trim
Two wood trims continue to be available as part of the 2004 model year. American Cherry or Burled Walnut can be ordered with any of the five interior leather/piping color combinations. Two additional exterior colors have been added - Alveston Red and Maya Gold - bringing total exterior choices to eight. The standard colors are Java Black, Giverny Green, Zambezi Silver, Chawton White, Adriatic Blue and Epsom Green.
The 2004 model has an MSRP of $71,585, an increase of $385 over the 2003 model plus $665 for destination. The price includes Roadside Assistance and complimentary scheduled maintenance during the 4-year/50,000 miles warranty period.
The MSRP for the Luxury Interior package is $5000, which includes the Heated Accessories package, which retails separately at $1,300.
The new Range Rover set several sales records during it first year of availability and garnered a number of awards from automotive enthusiast publications and motoring journalist associations.
POWERTRAIN
2004 RANGE ROVER SPECIFICATIONS
CONSTRUCTION
- Steel monocoque with integrated unitized chassis and three steel subframes
- Aluminum-alloy front quarter panels, hood and doors
- Zinc-coated (galvanized) steel roof and rear quarter panels
ENGINE
|
Type:
|
All-aluminum 90-degree DOHC V8
|
Displacement:
|
4.4 liters (268 cu. in./4,398 cc)
|
Bore x stroke:
|
3.62 in. x 3.26 in. (92 mm x 83 mm)
|
Compression ratio:
|
10.0:1
|
Horsepower @ rpm:
|
282 hp @ 5,400 rpm
|
Torque @ rpm:
|
325 lb.-ft @ 3,600 rpm
|
Fuel management:
|
Sequential multi-port fuel injection
|
Fuel requirements:
|
Premium unleaded
|
Preliminary EPA rating:
|
12/17 mpg city/highway
|
Fuel tank capacity:
|
26.4 U.S. gallons (100 liters)
|
Range:
|
384 miles
|
PERFORMANCE
|
|
0-60 mph:
|
9.0 sec
|
0-100 kph (0-62 mph):
|
9.2 sec
|
Maximum speed:
|
122 mph (Limited)
|
AERODYNAMICS
|
|
Coefficient of drag:
|
0.38
|
DRIVETRAIN
|
|
Drive system:
|
Permanent four-wheel drive
|
Traction control:
|
Four-wheel Electronic Traction Control (4ETC)
|
Transfer case:
|
Two-speed chain drive transfer gearbox with Torsen® center differential
|
Transmission:
|
Five-speed electronically controlled automatic with locking torque converter. Normal, Sport, and Manual CommandShift™and fully automatic shift modes
|
Gear ratios:
|
First: 3.57:1
Second: 2.20:1
Third: 1.51:1
Fourth: 1.00:1
Fifth: 0.80:1
Reverse: 4.10:1
|
Final drive ratio:
|
3.73:1
|
Transfer box ratio:
|
|
High:
|
1.00:1
|
Low:
|
2.70:1
|
Shift on the move at maximum speed:
|
|
High to Low:
|
10 mph
|
Low to High:
|
30 mph
|
In gear speed:
|
|
5th High:
|
29 mph/1,000 rpm
|
1st High:
|
6.5 mph/1,000 rpm
|
1st Low:
|
2.4 mph/1,000 rpm
|
SUSPENSION
|
|
Electronic Air Suspension (EAS) with multi-mode operation. Both automatic and manual adjustments. Automatic load-leveling.
|
|
Front suspension:
|
Independent; cross-linked electronic air suspension with MacPherson air struts
|
Rear suspension:
|
Independent; cross-linked electronic air suspension with double wishbones
|
STEERING
|
|
Type:
|
Rack-and-pinion with Servotronic speed sensitive assist
|
Turns, lock-to-lock:
|
3.5
|
Turning circle, curb-to-curb:
|
38.0 ft (11.6 m)
|
BRAKES
|
|
- Power-assisted four-wheel disc
- 13.5 in. x 1.2 in. (344 x 30 mm) vented disc front; 13.9 in. x 0.47 in. (354 x 12 mm solid disc rear)
Four-channel, all-terrain Anti-lock Braking System (ABS)
|
|
WHEELS & TIRES
|
|
- 19 x 8-inch aluminum alloy wheels; 255/55HR19 mud & snow radial tires
20 x 8-inch aluminum alloy wheels; 255/50VR20 radial tires (dealer accessory)
|
|
EXTERIOR DIMENSIONS
|
|
Overall length:
|
195.0 in. (4,950 mm)
|
Overall width:
|
75.7 in. (1,924 mm)
|
Overall height (less roof rails):
|
73.3 in. (1,863 mm)
|
Wheelbase:
|
113.4 in. (2,880 mm)
|
Track, front/rear:
|
64.1/64.0 in. (1,629/1,626 mm)
|
INTERIOR DIMENSIONS
|
|
Seating capacity:
|
Five
|
Head room, front/rear:
|
40.2/38.3 in. (1,021/974 mm)
|
Leg room, front/rear:
|
38.9/35.5 in. (988/902 mm)
|
Shoulder room, rear:
|
60.0 in. (1,524 mm)
|
Usable luggage capacity
|
|
To parcel tray, seats up:
|
18.9 cu. ft. (0.53 m3)
|
To roof, seats folded:
|
62.0 cu. ft. (1.76 m3)
|
OFF-ROAD CAPABILITIES
|
|
Ground clearance (maximum)
Off-road height:
|
11.1 in. (281 mm)
|
Total wheel travel, front/rear:
|
10.6/13.0 in. (269/330 mm)
|
Approach angle (off-road height):
|
32 degrees
|
Departure angle (off-road height):
|
29 degrees
|
Ramp breakover angle (off-road height):
|
28 degrees
|
WEIGHTS & TOWING CAPACITY
|
|
Curb weight:
|
5,379 lb. (2,440 kg)
|
GVWR:
|
6,724 lb. (3,050 kg)
|
Maximum axle load, front/rear:
|
3,366/4,070 lb. (1,527/1,846 kg)
|
Maximum trailer weight
|
|
Trailers with brakes, on-road, low range:
|
7,700 lb. (3,500 kg)
|
Maximum tongue weight:
|
550 lb. (250 kg)
|
SPECIFICATION NOTES
|
|
- Land Rover Range Rover is not subject to luxury tax as it is classified as a multi-purpose vehicle with a Gross Vehicle Weight Rating (GVWR) in excess of 6,000 lb.
|
|
|
STANDARD EQUIPMENT
APPOINTMENTS & FEATURES
SAFETY
- Four-channel, all-terrain anti-lock braking system (ABS)
- Four-wheel electronic traction control (4ETC)
- All-terrain Dynamic Stability Control (DSC)
- Hill Descent Control (HDC)
- Emergency Brake Assist (EBA)
- Electronic Brakeforce Distribution (EBD)
- Driver and front passenger airbag Supplemental Restraint System (SRS)
- Driver and front passenger seat-mounted side airbags
- Driver and front passenger-side head protection airbags
- Rear passenger-side head protection airbags
- Side-impact beams in front and rear doors
- Front crumple zones
- Three-point safety belts with height-adjustable anchors for outboard seating positions
- Three-point safety belt and head restraint for center rear seating position
- Pre-tensioning front safety belts
- Child seat tether anchors
- Head restraints for outboard seating positions
- Bi-Xenon headlights
- Power headlight washers and wipers
- Front and rear fog lamps
- LED center high-mount stop lamp
SECURITY
- HomeLink® system for remote control of garage door, gate and lighting operation
- Vehicle security system with perimetric and volumetric functions and engine immobilization.
- Central locking of all doors and tailgate
- Superlocking feature, which prevents the vehicle from being opened from inside or outside and sets the volumetric alarm
- Keyless entry. Vehicle keys equipped with integral remote handsets to control keyless-entry door locking and all security functions
- Child locks for rear doors
- Power windows and sunroof, each equipped with anti-trap feature. Lockout feature that disarms the power rear window controls
- Foldable/removable rear load space cover
- Park Distance Control (PDC). Provides audible warning of the proximity of obstacles
COMFORT
- Three-zone automatic climate control system with pollen filter, steering wheel-mounted controls plus auto and manual recirculation settings
- CFC-free air conditioning
- Ten-way, power adjustable driver seat and 6-way, power adjustable front passenger seat with adjustable head restraints, inflatable lumbar support and folding armrests
- Available heated front and rear passenger seats
- Three-position memory preset for driver seat, steering column and exterior mirror positions
- Leather-wrapped, power tilt and telescoping multi-functional steering wheel
- Available heated steering wheel rim
- Tilt-and-slide glass sunroof with sunshade
- Deep-tinted glass, including sunroof
CONVENIENCE
- Full instrumentation, including tachometer
- Electronic message center with trip computer
- Dual-blade (extendible) sun visors with lighted vanity mirrors
- Courtesy lighting, including external puddle lights located in the side-view mirrors and interior "waterfall" ambient illumination
- Power windows with one-touch open and close function and anti-trap feature for all four side windows and sunroof
- All-close/open function for windows and sunroof
- Retained accessory power for windows, power front seats and sunroof operation
- Variable-speed front wipers with intermittent feature
- Rear-window wiper and washer with variable function
- Programmable defrost function with ice warning indicator
- Electrically adjustable steering column. Steering wheel is automatically raised when the ignition key is withdrawn to improve ingress and egress
- Electrically adjustable, heated, side-view mirrors with power fold function
- Electronic cruise control with steering wheel-mounted controls
- Electronically locking fuel filler door
- Fuel filler door location indicator
- External temperature reading
- 60/40 split folding rear seat
- Five cupholders
- Full-size passenger side glovebox and center console cubby box with auxiliary power point
- Integral Class III trailer tow hitch receiver
- Available integrate rear ski bag
GLOBAL POSITIONING NAVIGATION SYSTEM (GPS)
- On-road functionality provides scalable maps; turn-by-turn directions with voice commands; and a database containing thousands of landmarks
- Off-road functionality provides a bird's eye view of the vehicle's off-road location - and the ability to place route-traceable geographic markers that facilitate the return trip
AUDIO EQUIPMENT
- Fifteen-transducer, 570-watt harman/kardon® LOGIC7 digital surround sound system with AM/FM-stereo cassette, Radio Data System (RDS) and Digital Signal Processing (DSP)
- Six-disc CD changer in the front glovebox
- Steering wheel-mounted controls for volume, station, mode and track/disc selection
- Dual glass-mounted diversity antenna system
- Speed-sensitive volume control
EXTERIOR COLORS
Chawton White
Java Black
Giverny Green
Epsom Green
White Gold
Zambezi Silver
Adriatic Blue
Alveston Red
INTERIOR COLORWAYS
Ivory seats with Aspen piping
Charcoal seats with Jet piping
Parchment seats with Navy piping
Sand seats with Jet piping
WOOD TRIM
Choice of Cherry or Burled Walnut wood trim
AVAILABLE PACKAGES
Heated Accessories Package includes:
- Heated front and rear seats
- Heated steering wheel rim
- Ski hatch and bag integrated into rear center armrest
Luxury Seat Package includes:
- Contour Seats with 14-way driver adjustment
- Extended leather trim throughout interior
- Heated Front and Rear Seats, Steering Wheel
Additional Colorways for Luxury Seat Package:
- Navy seats with Parchment piping
- Aspen seats with Ivory piping
DEALER-INSTALLED ACCESSORIES
Range Rover retailers stock a complete line of accessories, from two-position luggage nets to brush bars and roof cargo carriers and more, allowing users to equip the vehicle for their particular needs.
WARRANTY & SERVICE
- Four-year/50,000-mile new-vehicle limited warranty with free scheduled maintenance during warranty coverage
- Six-year/unlimited-mileage corrosion perforation limited warranty
- Land Rover Road RecoverySM 24-hour service provided for the duration of the new-vehicle limited warranty
LEGAL NOTES
- harman/kardon® is a registered trademark of Harman International.
- HomeLink® is a registered trademark of Johnson Controls.
- Land Rover Road RecoverySM is a registered service mark of Land Rover North America, Inc.
- Details and specifications are subject to change. Equipment on Canadian models may vary.
More information is available by calling 1-800-FINE-4WD or at www.rangerover.landrover.com.
|
|
|
