The automotive market is rife with plenty of examples of gimmicky items and options that quickly jack up the price of a car. While I can understand investing into an option for its direct impact on my safety, some are a bit...questionable.

Take, for instance, the head's up display.

More often than not, you'll see premium vehicles with a "Technology Package" that includes a heads-up display. Not only will it have everything you can imagine from lane detection systems to radar-guided cruise control, it'll also run you a ton of coin.

But one thing I've notice behind the wheel is that when it's on, I don't really pay attention to it. At all.

The only time I've been able to use the HUD with any benefit was with navigation instructions in the BMW X6M.

So when automakers sell it as jet-inspired technology are they really stretching it OR is it really the next-generation of driving?

BMW's press release follows:

Low-flying over hilly terrain at a speed of almost 800 kilometres per hour in the cockpit of a Eurofighter jet is a challenge to even the most hardened of military pilots. “When you’re flying at tree-top height at around 220 metres a second, only extremely accurate head-up display technology is able to provide the necessary ease of mind,” comments Wing Commander Robert Hierl, test pilot at the Technical and Airworthiness Centre for Aircraft.

By means of a front panel projector, all flight-relevant data supplied by the flight management system as well as information and signals crucial to a mission are displayed on a second, vertically positioned panel located in the cockpit. In order to prevent the pilot from being distracted, all information is displayed in virtual form at eye level within the direct field of vision, thus guaranteeing the highest degree of concentration, supremacy and safety for both the pilot and the machine.

BMW was the first European car builder to adapt head-up display technology – a system initially deployed in aviation and constantly further developed over several decades – for use in volume-production vehicles. Since January 2004, this innovative driver assistance system has been an integral part of BMW ConnectedDrive offered for the BMW 5 Series. Consistently further developed and optimised, it is now a full-colour head-up display and optionally available for almost all series.

In terms of graphic representation, functionality and flexibility, the unique new Head-Up Display feature makes a significant contribution towards active safety by displaying driver-relevant information in high-quality resolution within the driver’s direct field of vision, so that he or she does not have to take their eyes off the road. A crucial gain in safety as researchers know: A normal driver takes a whole second to read the speed indicator in the instrument panel or to glance at the navigation device. Whilst the driver is distracted, that is without his or her eyes on the road, the vehicle covers a distance of around 14 metres when travelling in urban areas at a speed of 50 km/h – virtually a “blind flight”.

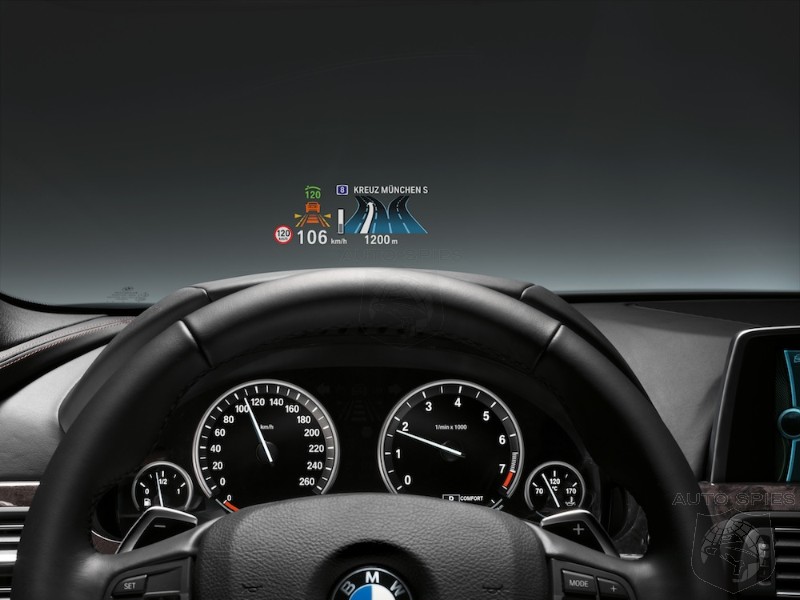

With Head-Up Display, the time required by the driver to assimilate information is reduced by more than a half, the system making a decisive contribution towards concentrated and focused driving. The virtual image projected onto the windscreen is perceived as “hovering“ at eye level above the bonnet and is visible only to the driver. Moreover, this form of display is less tiring, as the eye does not have to constantly change between close-range and remote vision. Also, the brightness of the image adjusts perfectly to the surroundings, so that the eye does not have to readapt each time.

The reproduction of data is effected by means of an intense light source, which is located inside the instrument panel and shines through a translucent TFT (Thin Film Transistor) display, the image being transferred to the windscreen via specially shaped mirrors. Owing to the convex shape and the physical properties of glass, using the windscreen as a reflector is an extremely complex process. In a windscreen, the light path is normally refracted, resulting in double images.

In the case of the Eurofighter, this problem is solved by means of an additional panel located directly within the pilot’s field of vision. BMW tackles this physical phenomenon with the aid of a wafer-thin foil, which is integrated into the windscreen, ensuring the superimposition of the projected images and, as a result, flawless, undistorted representation. Full-colour Head-Up Display offers the driver a tremendous increase in reading comfort. The complete colour spectrum facilitates a realistic and thus more intuitive display of images and symbols. These speak for themselves, are perceived even faster and do not have to be decoded or interpreted. Even Eurofighter test pilot Robert Hierl is highly impressed: “Our monochrome head-up display technology is unable to offer such a brilliant display quality.”
