2004 BMW 5 Series Product highlights
Series overview
• All-new platform
• Four Sedan models offered:

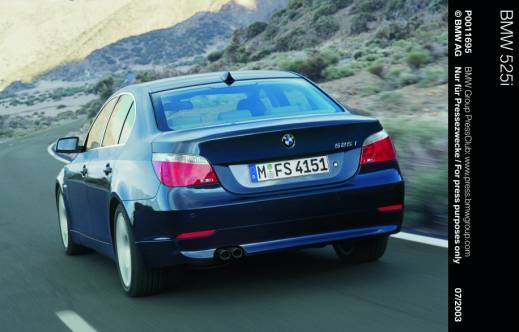

• 525i, with 2.5-liter inline 6-cylinder engine (184 hp)
• 530i, with 3.0-liter inline 6-cylinder engine (225 hp)
• 545i, with 4.4-liter Valvetronic V-8 engine (325 hp) and 6-speed automatic transmission
• 545i 6-Speed, same engine as 545i, 6-speed manual transmission
• Base prices including destination charge:
525i – $39,995
530i – $44,995
545i – $54,995
545i 6-Speed – $58,295
• Built in Germany; production of 530i began July 1, 2003, other models September 1, 2003
What’s new (key points only)
All models
• Choice of three 6-speed transmissions: manual, STEPTRONIC automatic and Sequential Manual Gearbox (SMG) 1
• Significantly evolved chassis features (suspension, steering, brakes)
• New wheel designs and specifications
1 – Delayed availability.
What’s new (cont.)
• New Sport Package with Active Steering, Active Roll Stabilization and run-flat performance tires (standard with 545i 6-Speed, otherwise optional)
• All-new lighter-weight body design
• Aluminum front-end structure for weight reduction and optimization of front/rear weight distribution
• Automatic headlight control and rain-sensing windshield wipers now standard on all models
• Xenon Adaptive headlights (standard 545i models, optional 525i and 530i)
• All-new interior design with increased rear seating space
• iDrive control system for many features and functions
• BMW Assist, including automatic collision notification, SOS button, enhanced Roadside Assistance, Concierge , Service Request and links to Customer Relations
• Evolved automatic climate control with full left/right temperature and air-distribution controls, bi-directional solar sensor and other features
• 2-way power moonroof continues as standard equipment on all models; has increased opening area and more 1-touch functions than before
• New 10-speaker standard audio system
• Optional Premium Sound Package with 13-speaker Logic 7 audio system and glove-compartment-mounted CD changer
• Optional Rear-seat Entertainment Package with video monitor, multimedia changer, wireless remote control and input jack for external sources 1
• Intelligent Safety and Information System (ISIS) for control of safety systems and devices
• Evolved airbag engineering
• Integrated front- and rear-seat Head Protection System (AHPS II)
• Other new options:
• Active Cruise Control
• Head-up Display 1
• 20-way front Comfort seats
• Heated rear seats
• Voice Command System (included with optional Navigation System)
• Sirius Satellite Radio – available 03/2004, but may be retrofitted to SOP
• Maple Anthracite wood interior trim
1 – Delayed availability.
What’s new (cont.)
545i models
• Valvetronic V-8 engine; new technology results in 35-hp power increase over previous 540i engine
Other highlights
All models
• BMW Full Maintenance Program for 4 years/50,000 miles included in base price
• Manual transmissions have self-adjusting clutch for long clutch life
• Aluminum suspension system for low unsprung weight, outstanding handling and riding comfort:
• Double-pivot strut-type front suspension
• Multi-link rear suspension
• Vehicle and Key memory allows users to personalize many electronic comfort, convenience and security features
• Standard multi-function remote control, integrated into head of master key; includes alarm arming/disarming, selective unlocking, remote trunk release, panic function, opening of power windows and moonroof, switch-on of interior lights with locked vehicle or upon unlocking
• Leather-covered 3-spoke power tilt/telescopic steering wheel with auto tilt-up for entry/exit, multi-function controls
• BMW Ambiance Lighting: LED lights in roof bathe console area in soft orange light, helping occupants find controls at night; enhanced lighting features included in 525i/530i Premium Package, standard in 545i models
• 10-way power front seats standard in all models; 12-way power seats in Sport Package, 20-way Comfort seats optional; 4-way power front-seat lumbar support in 525i/530i Premium Package, optional in 545i models
• Memory system for driver’s seat, steering wheel and exterior mirrors; 2 positions for each user.
• Auto tilt-down of right exterior mirror for backing up
• 1-touch operation of all side windows and moonroof
• Body structure engineered for excellent occupant protection in full and offset frontal impacts, side impacts and rear impacts
• Front-seat safety belts with automatic tensioners and force limiters
• New front and rear Head Protection System (AHPS II) standard in all models
• Front-seat side-impact airbags standard in all models
Other highlights (cont.)
• Rear-seat side-impact airbags optional in all models
• Battery Safety Terminal – after a severe impact, severs high-current connection between battery and starter cable to help prevent possible short circuit
• New Intelligent Safety and Information System (ISIS) for controlling vehicle’s safety systems and devices
Active front head restraints OPT [1] OPT 15 OPT 15 OPT 15
Intelligent Safety and Information System (ISIS)
for deployment of safety systems S S S S
Post-impact safety measures:
Unlocking of central locking system S S S S
Switch-on of hazard flashers S S S S
Switch-on of interior lighting S S S S
Disconnect of alternator, fuel pump & starter
from battery (via Battery Safety Terminal) S S S S
Central locking system with double-lock anti-
theft feature, selective unlocking S S S S
Coded Driveaway Protection S S S S
Alarm system with operation from remote,
interior motion detector S S S S
S – Standard OPT – Optional
2004 BMW 5 Series Technical Specifications
General 525i 530i 545i
Curb weight, lb.:
Manual transmission 3428 3472 3803
Sequential Manual Gearbox
(SMG) 1 3450 3494 3814
Automatic transmission 3450 3494 3814
Weight distribution, front/rear, %:
Manual transmission 49.8/50.2 50.8/49.2 50.3/49.7
Sequential Manual Gearbox
(SMG) 1 50.2/49.8 51.1/48.9 51.4/48.6
Automatic transmission 50.2/49.8 51.1/48.9 51.4/48.6
GVWR, lb.: TBD 2
Wheelbase, in. 113.7 2
Track, front/rear, in. 61.3/62.3 2,3
Length, in. 190.6 2
Width, in. 72.7 2
Height, in. 58.0 2
Body 525i 530i 545i
Type 4-door sedan 2
Aerodynamic drag coefficient 0.29 2
EPA size classification Compact 2
1 – Delayed availability.
2 – Specification applies to all models.
3 – With standard wheels.
Accommodations 525i 530i 545i
Seating capacity, persons 5 2
Shoulder room, front/rear, in. 57.3/57.2 2
Head room, front/rear, in. 37.7/37.9 2
Leg room, front/rear, in. 41.5/36.0 2
EPA interior volume, cu ft. 99.1 2
EPA cargo volume, cu ft. 14.0 2
Engine & electrical 525i 530i 545i
Engine type DOHC inline 24-valve DOHC 32-valve
6-cylinder, Double VANOS 4 (4-cam) V-8,
steplessly variable intake- & Valvetronic variable
exhaust-valve timing 5 valve lift & Double
VANOS 4 steplessly
variable intake- &
exhaust-valve timing
Bore x stroke, mm/in. 84.0 x 75.0/ 84.0 x 89.6/ 92.0 x 82.7/
3.31 x 2.95 3.31 x 3.53 3.50 x 3.15
Displacement, cc/cu in. 2494/152 2979/182 4398/268
Compression ratio 10.5:1 10.2:1 10.5:1
Power @ rpm, hp 184 @ 6000 225 @ 5900 325 @ 6100
Torque @ rpm, lb-ft. 175 @ 3500 214 @ 3500 330 @ 3600
Engine-management system Siemens MS 43 5 Motronic ME9
Fuel requirement Premium unleaded 2
Fuel capacity, U.S. gal. 18.52
Battery capacity, amp-hr. 80 5 90
Alternator output, amp./W 120/1680 5 170/2380
2 – Specification applies to all models.
4 – VANOS = VAriable NOckenwellen Steuerung = variable camshaft control, or variable valve timing.
5 – Specification applies to 525i & 530i.
Drivetrain 525i 530i 545i
Drive system Front engine/rear drive 2
Manual transmission ZF Type H, ZF Type G,
6-speed 5 6-speed
Ratios: 1st 4.35:1 5 4.06:1
2nd 2.50:1 5 2.40:1
3rd 1.66:1 5 1.58:1
4th 1.23:1 5 1.19:1
5th 1.00:1 5 1.00:1
6th 0.85:1 5 0.87:1
Reverse 3.93:1 5 3.77:1
Final drive ratio 3.15:1 2.93:1 2.93:1
Sequential Manual Gearbox 1 Electrohydraulic/electronic controls applied to 6-
speed manual transmission, ratios as for Type H
or Type G as appropriate to model; includes Dynamic
Driving Control (Sport button) affecting shift
characteristics & engine response to accelerator pedal
Automatic transmission ZF 6 HP 19 5 ZF 6 HP 26
6-speed STEPTRONIC with Adaptive Transmission
Control, selectable Manual & Sport modes 2
Ratios: 1st 4.17:1 2
2nd 2.34:1 2
3rd 1.52:1 2
4th 1.14:1 2
5th 0.87:1 2
6th 0.69:1 2
Final drive ratio 3.73:1 3.46:1 3.38:1
1 – Delayed availability.
2 – Specification applies to all models.
5 – Specification applies to 525i & 530i.
Chassis 525i 530i 545i
Body/frame construction Unitized; aluminum front end, otherwise steel
Front suspension Struts, double-pivot lower arms, coil springs, twin-
tube gas-pressure shock absorbers, anti-roll bar;
aluminum suspension system & subframe (OZSP: sport
suspension calibration, Active Roll Stabilization) 2
Rear suspension 4-link Integral suspension, coil springs, twin-tube gas-
pressure shock absorbers, anti-roll bar; aluminum
suspension system & subframe (OZSP: sport
suspension calibration, Active Roll Stabilization) 2
Steering type Rack & pinion, engine-speed-sensitive power assist 2
(OZSP: Active Steering with Servotronic vehicle-
speed-sensitive power assist)
Overall ratio, standard steering Mechanically variable; mean ratio is 14.1:1 2
Overall ratio, Active Steering Electrically/electronically variable over wide range of
10:1 – 18:1 2
Turning circle, ft. 37.5 2
4-wheel ventilated disc brakes
with aluminum calipers:
Front, diameter x thickness, 310 x 24/ 324 x 30/ 348 x 30/
mm12.2 x 0.94 12.8 x 1.18 13.7 x 1.18 6
Rear, diameter x thickness, 320 x 20/ 320 x 20/ 345 x 24/
mm12.6 x 0.79 12.6 x 0.79 13.6 x 0.94 6
Assist Vacuum 2
Wheels: standard Lightweight Cast alloy, Cast alloy,
forged alloy, 17 x 7.5 17 x 7.5
16 x 7.0
optional (OZSP) Cast alloy, Cast alloy, Cast alloy,
17 x 8.0 18 x 8.0 18 x 8.0 front/
18 x 9.0 rear
2 – Specification applies to all models.
6 – Compound rotors, aluminum/cast-iron construction.
OZSP – Sport Package
Chassis (cont.) 525i 530i 545i
Tires: standard 225/55R-16 225/50R-17 225/50R-17
V-rated V-rated V-rated
all-season all-season all-season
optional (OZSP) 245/45R-17 245/40R-18 245/40R-18 F/
W-rated run-flat W-rated run-flat 275/35R-18 R
performance performance W-rated run-flat
performance
Stability-enhancement system Dynamic Stability Control (DSC), including Dynamic
Traction Control, electronic brake proportioning,
antilock braking (ABS), Dynamic Brake Control &
cornering/braking stability enhancement 2
Performance data 525i 530i 545i
Acceleration, 0-60 mph, sec.: 7
manual transmission or SMG 1 7.8 6.6 5.7
automatic transmission 8.2 6.9 5.8
Top speed, mph:
manual transmission or SMG 146 150 8 150 8
automatic transmission 144 150 8 150 8
Fuel economy, EPA est. MPG, city/highway:
manual transmission NA 20/30 17/25
SMG NA 19/28 17/24
automatic transmission 19/28 18/28 18/26
1 – Delayed availability.
2 – Specification applies to all models.
7 – BMW AG test results. Actual acceleration results may vary depending on specification of vehicle; road and environmental conditions; testing procedures and driving style. These results should be used for comparison only, and verification should not be attempted on public roads. BMW urges you to obey all posted speed limits and to please wear your safety belt at all times.
8 – Electronically limited.
OZSP – Sport Package
F – Front
R – Rear
TBD – To be determined.
BMW of North America 2004 Model Year 5 Series Retail Prices (as of September 2nd 2003)
U.S. Models
|
525i
Sedan
|
530i
Sedan
|
545i
Sedan
|
545i 6-spd.
Sedan
|
Base Price USA Port of Entry *
|
$39,995
|
$44,995
|
$54,995
|
$58,295
|
STEPTRONIC 5-speed, Automatic Transmission
|
1,275
|
1,275
|
STD
|
NA
|
Sequential Manual Gearbox (SMG) 6-speed 1
|
1,500
|
1,500
|
NA
|
NC
|
Rear Door Mounted Side Impact Airbag
|
385
|
385
|
385
|
385
|
Power Rear Sun Shade/Manual Rear Side Window Shade
|
575
|
575
|
575
|
575
|
Maple Wood Trim (requires Premium Package)
|
NC
|
NC
|
NC
|
NC
|
Poplar Wood Trim
|
ZPP
|
ZPP
|
STD
|
STD
|
Comfort Seats including Lumbar Support 2
|
NA
|
1,200
|
1,200
|
1,200
|
Fold Down Rear Seats
|
475
|
475
|
475
|
475
|
Lumbar Support for Front Seats 3
|
ZPP
|
ZPP
|
400
|
400
|
Rear Seat Heating 4
|
350
|
350
|
350
|
350
|
Park Distance Control (PDC) with graphic display, front and rear
|
700
|
700
|
700
|
700
|
Xenon Headlights with Adaptive Headlights
|
800
|
800
|
800
|
800
|
Active Cruise Control (ACC) 5
|
2,200
|
2,200
|
2,200
|
2,200
|
On-board Navigation System
|
1,800
|
1,800
|
1,800
|
1,800
|
Head up display 6
|
1,000
|
1,000
|
1,000
|
1,000
|
Satellite Radio Preparation
|
75
|
75
|
75
|
75
|
Anthracite Interior Trim
|
NA
|
NA
|
NC
|
NC
|
Dakota Leather Upholstery
|
1,450 or ZPP
|
1,450 or ZPP
|
STD
|
STD
|
|
|
|
|
|
Sport Package (ZSP – for manual or SMG) 7
|
3,300
|
3,300
|
NA
|
STD
|
Sport Package (ZSS – for STEPTRONIC)
|
NA
|
NA
|
3,300
|
NA
|
Premium Package (ZPP) 7
|
2,400
|
2,400
|
NA
|
NA
|
Premium Sound Package (ZPS)
|
1,800
|
1,800
|
1,800
|
1,800
|
Cold Weather Package (CWP)
|
750
|
750
|
750
|
750
| * Includes $695 destination & handling charge
ZSP/ZSS = Sport Package
ZPP = Premium Package
ZPS = Premium Sound Package
CWP = Cold Weather Package
STD = Standard Equipment
NA = Not Available
NC = No Charge
1 Requires Sport Package (ZSP)
2 Requires Premium Package (ZPP) for 530i.
3 Included with Premium Package (ZPP)
4 Requires Cold Weather Package (ZCW) and leather
5 Requires Automatic Transmission
6 Requires Navigation system
7 Requires leather
2004 Model Year 5 Series Option Packages
Package |
525i Sedan
|
530i Sedan
|
545i Sedan
|
545i 6-speed Sedan
|
Premium (ZPP)
|
$2,400
- Leather upholstery
- Maple Wood trim
- Universal garage
door opener
- Auto-dimming mirror
- Lumbar support
|
$2,400
- Leather upholstery
- Maple Wood trim
- Universal garage
door opener
- Auto-dimming mirror
- Lumbar support
|
NA |
NA |
Sport (ZSP / ZSS)
|
$3,300
- 17 inch wheels and run-flat performance tires
- Sport suspension
- Sport seats
- Active steering
- Active Roll Stabilization
- Shadow line exterior trim
|
$3,300
- 18 inch wheels and run-flat performance tires
- Sport suspension
- Sport seats
- Active steering
- Active Roll Stabilization
- Shadow line exterior trim
|
$3,300
- 18 inch wheels and run-flat performance tires
- Sport suspension
- Sport seats
- Active steering
- Active Roll Stabilization
- Shadow line exterior trim
|
STD |
Premium Sound (ZPS)
|
$1,800
- 6 disc CD changer
- Logic 7 sound system
|
$1,800
- 6 disc CD changer
- Logic 7 sound system
|
$1,800
- 6 disc CD changer
- Logic 7 sound system
|
$1,800
- 6 disc CD changer
- Logic 7 sound system
|
Cold Weather (ZCW)
|
$750
- Heated front seats
- Hi-intensity headlamp
cleaning system
- Heated steering wheel
|
$750
- Heated front seats
- Hi-intensity headlamp cleaning system
- Heated steering wheel
|
$750
- Heated front seats
- Hi-intensity headlamp cleaning system
- Heated steering wheel
|
$750
- Heated front seats
- Hi-intensity headlamp cleaning system
- Heated steering wheel
|
[1] – Included with optional Comfort front seats.
|
|
