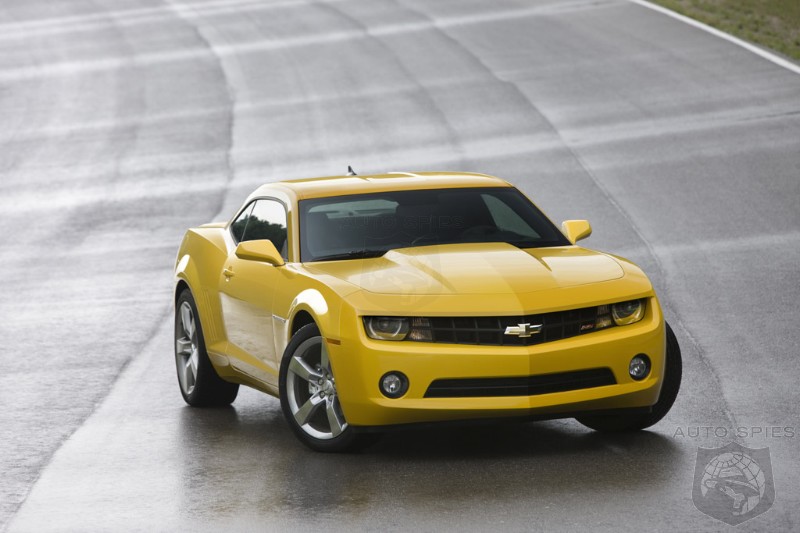

Chevrolet introduced the production 2010 Camaro today. It is a heritage-inspired sports car for the 21st century, combining great looks and performance; advanced technology and surprising efficiency – including 26-mpg estimated highway fuel economy. Sales begin in the first quarter of 2009.

Built on GM’s new, global rear-wheel-drive architecture, the Camaro is offered in V-6-powered LS and LT models, as well as the V-8-powered SS. All models and powertrain combinations include fuel-saving six-speed transmissions.

“Camaro delivers all of the things that make Chevrolet such a revered, global brand,” said Ed Peper, GM North America vice president, Chevrolet. “It competes with the world’s best sports cars and does so with styling, fuel economy and value our competitors simply can’t match.”

Advanced powertrain technologies, including engines with direct injection and Active Fuel Management, enable a satisfying balance of exhilarating performance and good fuel economy.

“The new Chevrolet Camaro delivers a thoroughly modern, advanced package of performance, comfort and technology,” said Peper. “It’s a sports car for a new generation of enthusiasts that doesn’t forget the heritage that helped make the original a cultural icon . That is no small feat and it took a worldwide commitment to achieve it.”

Indeed, the 2010 Camaro exemplifies GM’s global development process. The design concept originated in the United States; engineering was directed by GM’s global rear-wheel-drive team in Australia; validation was conducted on roads around the world and assembly will take place at GM’s award-winning Oshawa facility in Canada.

Product highlights include:

-Sleek styling with contemporary cues and 10 available exterior colors

-LS and LT models offered with an advanced, 3.6L direct-injected V-6 engine with variable valve timing and a choice of six-speed manual or automatic transmissions

-SS model offered with 6.2L V-8 – including fuel-saving Active Fuel Management on automatic-equipped combinations – and a six-speed manual transmission

-Four-wheel independent suspension system, including a 4.5-link rear suspension

-Variable-rate power steering with the rack mounted forward of the front axle for greater driver feel

-Four-wheel disc brake systems standard on all models, including four-piston Brembo calipers on SS models

-Stabilitrak stability control system StabiliTrak electronic stability control system –
GM’s StabiliTrack electronic stability control system uses sophisticated vehicle sensors tied to the anti-lock braking system to help the driver maintain control during certain maneuvers. The system provides increased vehicle control by continuously monitoring the car’s steering angle, individual wheel speed, brake pressure, lateral acceleration and yaw rate. The information is then used to compare the direction the driver is steering with the vehicle’s actual path, so the system can make the necessary corrections to help the driver keep the vehicle on path. and traction control standard on all models

-Competitive/Sport modes for the stability system offered on SS models, including launch control on SS models equipped with the six-speed manual transmission

-Family of 18-, 19- and 20-inch wheels

-Detailed interior with heritage-inspired design, excellent attention to detail and available ambient lighting via LED light pipe technology

-Robust body structure and exceptional build quality

-Six standard air bags, including head curtain side-impact air bags and front seat-mounted thorax side air bags

-RS appearance package available on LT and SS, including HID headlamps with integrated halo rings, spoiler, specific taillamps and 20-inch wheels

The new Camaro also has technologies that enhance performance, comfort and convenience, including:

-Bluetooth phone connectivity
-Premium Boston Acoustics audio system
-USB connectivity
-Ultrasonic rear parking assist (late introduction)
-Remote vehicle starting system

OnStar OnStar — OnStar is the in-vehicle safety and security system created to help protect you and your family on the road. OnStar’s innovative three-button system offers:
• 24-hour access to expertly trained, caring advisors
• A connection to emergency assistance
• Access to OnStar Hands-Free CallingXM Satellite Radio
Additionally, details such as frameless door windows with automatic indexing glass contribute to the overall feeling of quality, substance and technical prowess.

Design details

With a design that is very faithful to the original concept, the 2010 Camaro is a 21 st century sports car that acknowledges its heritage. A long front dash-to-axle and short rear deck give the Camaro classic proportions, while a sleek windshield profile, wheels pushed to the corners and muscular fender forms are modern elements that reinforce its advanced engineering – and give the car a decidedly aggressive stance.

Elements such as a forward-V shape at the front of the car and “gills” in the rear quarter panels are distinctly Camaro cues, as are the broad rear fender “shoulders.” Those elements make the new Camaro instantly recognizable, but their execution is smoothly integrated into the contemporary exterior form. A family of large, 18-, 19- and 20-inch wheels also contributes to the Camaro’s modern appearance.

“The new Camaro is just that – new,” said Ed Welburn, vice president of GM Global Design. “We acknowledge the nameplate’s strong heritage in the design, but recognize that keeping this modern sports car relevant meant more than simply honoring a classic car. The line forms, stance and overall execution are consistent with other new Chevrolets.”

A well-executed balance of heritage, modern design and attention to detail also characterizes the Camaro’s interior. A pair of deeply recessed instrument binnacles that feature round gauges in square housings is a nod to classic Camaros, while an available ambient light package offers advanced LED light pipe technology to give the cabin a distinctive and inviting glow. Cloth upholstery is standard; heated leather-appointed seats are available.

Details such as large, chrome-trimmed controls, low-gloss surfaces and premium fabric or acrylic appliqués convey a richness that is unprecedented in previous Camaro models – and challenge its contemporary competitors. More great detail is evidenced in the available center-console gauge cluster, which takes its cue from a similar option on 1969 Camaros. It displays oil temperature, oil pressure, state-of-battery and transmission fluid temperature, all highlighted with modern LED backlighting.

Powertrains

An advanced, efficient 3.6L direct-injected V-6 with variable valve timing is standard on LS and LT models. Direct injection technology helps the engine deliver more power through increased efficiency, while maintaining fuel economy and lowering emissions. That means less fuel is consumed and lower emissions generated – including a 25-percent drop in cold-start hydrocarbon emissions.

The Camaro’s 3.6L engine also employs variable valve timing to optimize performance and fuel economy across the rpm range. It is rated at an estimated 300 horsepower (224 kW) and 273 lb.-ft. of torque (370 Nm). A six-speed manual transmission is standard with the 3.6L engine; a Hydra-Matic 6L50 electronically controlled six-speed automatic, with TAPshift control, is available.

The high-performance Camaro SS is equipped with a powerful 6.2L V-8, with a choice of a six-speed manual or six-speed automatic transmission. Standard, manual transmission-equipped models receive the LS3 engine, estimated at 422 horsepower (315 kW) and 408 lb.-ft. of torque (553 Nm). The LS3 debuted on the 2008 Corvette and uses high-flow cylinder heads based on the Corvette Z06’s LS7 engine to enable great low-end torque and high-rpm power. It is paired with a TR6060 six-speed transmission.

A new, L99 V-8 engine is used on automatic transmission-equipped SS models. It is based on the LS3 and carries all of its high-performance design features, but also includes GM’s fuel-saving Active Fuel Management feature. It enables the engine to run on only four cylinders during light-load driving conditions, such as highway cruising, to improve fuel economy. The V-8 is estimated at 400 horsepower (299 kW) and 395 lb.-ft. of torque (535 Nm); and it is matched with a Hydra-Matic 6L80 six-speed transmission. This combination delivers an estimated 23 mpg on the highway.

Body structure and chassis

The 2010 Camaro is built on GM’s global rear-wheel-drive architecture, with a strong body structure that enhances safety, quietness and handling. World-class build quality and attention to detail are enabled by features including one-piece body side stampings and very precise tolerances between body panels.

Front and rear independent suspensions are mounted to the rigid chassis, including a multi-link strut arrangement in the front with a direct-acting stabilizer bar and a double ball-joint configuration; and a unique, 4.5-link rear suspension that is double-isolated from the chassis for smoother, quieter driving experience.

Camaro offers two suspensions. LS and LT models receive an FE2 (sport) suspension, while the SS receives the FE3 (performance) suspension, including a lower ride height. Each is tuned to match the performance capabilities of their respective powertrains, as are their wheel-and-tire combinations.

A variable-rate rack-and-pinion power steering system mounts the rack forward of the front axle, for more direct action, an enhanced feeling of driver feedback and better weight balance.

Brakes and chassis control

Four-wheel disc brakes with ABS are standard on all models. LS and LT models receive single-piston calipers all around, with mass-reducing aluminum rear calipers. SS models have larger rotors that are acted upon by four-piston, aluminum Brembo calipers at all four corners. They are designed to stand up to the severe use encountered on road-race tracks, delivering excellent feedback and pedal feel, as well as fade-resistant performance during racing.

GM’s StabilTrak electronic stability control system is standard and incorporates traction control. The system on SS models includes Competitive/Sport mode that is adjustable for performance driving, such as on a racetrack; it also includes a Launch Control feature on SS models with the manual transmission. It enables quicker, more consistent takeoffs during performance driving.

Safety

Designed to protect occupants before, during and after a crash, the Camaro offers a comprehensive system of safety features – starting with a robust body structure and integral safety cage around the passenger compartment. High-strength steel and ultra high-strength steel are used in key areas throughout the structure.

Safety technologies integrated in the Camaro include:

Driver and front-passenger dual-stage air bags Dual-stage Air Bags –
Dual-stage air bags are designed to inflate at high speed in serious crashes, but deploy with less force in minor-to-moderate crashes. The air bag system’s sensors determined the severity of the crash, signaling the appropriate deployment speed.Driver and front-passenger seat-mounted thorax side-impact air bags Head curtain side-impact air bags for front and rear seat occupants
Front seat safety belt load limiters and pre-tensioners
The front passenger protection system

Front Passenger Detection System — To avert potential injury risk from high-pressure airbag inflation, the front passenger detection system will suppress air bag deployment if a child or person of small stature is sensed sitting on the passenger seat. It also senses the presence of a child restraint on the seat, and will suppress airbag deployment accordingly.
The detection system uses a mat sensor embedded in the passenger seat that establishes the occupant’s weight and weight distribution. If this is below a certain level, the sensor alerts the SDM central control unit and the front passenger airbag will not deploy.
senses children and small-stature adults and suppresses air bag deployment when appropriate.

Standard OnStar service assists after a crash. With OnStar’s Advanced Crash Response System, the vehicle automatically sends a signal to OnStar for assistance, even if the air bags don’t deploy.

Chevrolet European Press Release:

On the eve of the Camaro Convertible Concept’s breathtaking debut at the British International Motor Show, Chevrolet has pulled off the wraps of the production version of the car that will revive one of the most iconic names in motoring history.

Unveiled at a special ceremony in Detroit, the coupe version of the heritage-inspired performance model will be built at GM’s Oshawa plant in Canada, and will make its first appearance in US Chevrolet showrooms in the first quarter of 2009, with European sales starting a year later.

With a design that is faithful to the acclaimed concept, the new Camaro is a 21st century sports car that acknowledges its heritage. A long bonnet and short rear deck give the car classic proportions, while the muscular wheelarches and sleek windscreen profile give it a decidedly aggressive stance.

The theme continues inside, with a combination of modern LED lighting and retro-styled recessed instrument binnacles, featuring round gauges in square housings.

Yet despite the obvious styling cues that hark back to the original 1967 muscle car, the new Camaro is bristling with technical innovation.

“The new Camaro is just that – new,” said Ed Wellburn, vice president of GM Global Design. “We acknowledge the nameplate’s strong heritage in the form of the design, but recognise that keeping this modern sports car relevant meant more than simply honouring a classic car. The line forms, stance and overall execution are consistent with other new Chevrolets.”

Under the skin, the Camaro uses an advanced four-wheel independent suspension system with a multilink rear end, along with a StabiliTrak stability control system and four-piston Brembo brake callipers, combining to give the Camaro a sophisticated dynamic package.

Other features of the new model will include an ultrasonic park assist, Bluetooth connectivity, a premium audio system, six airbags and – for Europe – 20-inch alloy wheels.

In the USA, two alloy-blocked engines will be offered – a 3.6-litre V6 and a 6.2-litre V8, developing 300bhp and 420bhp respectively. Both are to be offered with a choice of six-speed manual or automatic transmissions.

Details of European and UK-specific model options will be unveiled much closer to the car’s on-sale date in 2010.
